AC COB LED indoor wall Spotlight AC230V 12W 3000K 4000K 6000K 70Ra 80Ra driver on board Aluminum PCB

Features

• It can be connected to AC line voltage directly.
• The product has high power factor and low total harmonic distortion.
• It offers high performance and brightness.
• The product has a long lifespan and high reliability.
• It has low electromagnetic interference.
• The product has a simple Bill of Materials (BOM).
• It conforms to CE and UL standards and is compliant with ROHS and REACH regulations.
• The product is easy to assemble.

1) product code: C=Client Module D=Self Module

2) Client Code & Module Code: if ①=C then 4 digit for client code else for self module code

3) IC Code: one character for IC

4) Power Code:

5) Voltage Code:11=110V,12=120V,22=220V,23=230V

6) CCT Code

Electrical & Optical Characteristics(Ta=25℃) Table 2-1

Optical properties

Chromaticity Bins

TYF complies with the ANSI C78.377A standard for its chromaticity bin structure. For each ANSI quadrangle for the CCT range of 2700K to 6500K, TYF provides 5 Bins and 3 Bins.

Table 4-1 5 step Bins

Table 4-2 3 step Bins

Typical Electrical & Optical Curves

Figure 4-2-1 Relative Power vs. Voltage, T_a =25℃

Figure 4-2-3 Radiant Pattern, T_a =25℃

Notes:

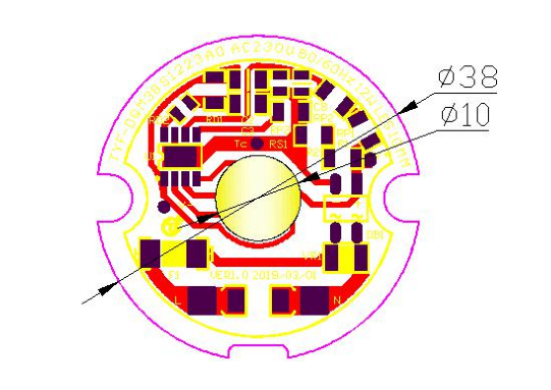

1) All dimensions are in millimeters.(Tolerance:±0.2mm)

2)Scale: None

TYF Opto. LED modules products, packed in plastic Tray, according to different size, XX PCs each plastic Tray, as shown in the following. products without plastic box packed in bubble bags, in order to prevent the outside pressure, choose different bubble bag, according to the product size in each pack of XX products, packaged product will be stored in the form of carton and sealed, as shown in the following.

1) xx PCS LED module per Tray 4) Box information & packing

2)Tray stack and taping, XX LED module trays and additional 1 dummy trays each up of box. Add silica gel (1 each) on top of the tray

3) Sealing packing
