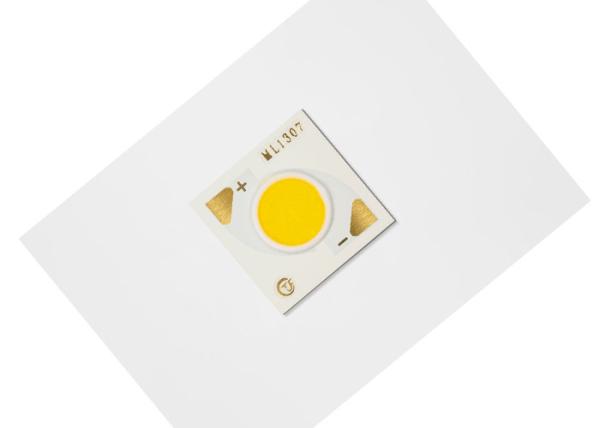

100w Aluminum base outdoor light COB flood lights lanscape lights street lights

• Efficacy of 128 lm/W typical for 3000K, 80CRI

• Compact high flux density light source

• Uniform, high quality illumination

• Minimum 70, 80, and 90 CRI options

• StreaCLined thermal path

• ENERGY STAR® / ANSI compliant color binning

structure with 2, 3 and 5 SDCM standard

• More energy efficient than incandescent, halogen

and fluorescent lamps

• High voltage or Low voltage DC operation

• Product series and company logo on the front

• RoHS compliant

The part number designation for TYF ML Series LED arrays is explained as follows:

5.1 Color Binning Information

Figure 1: Graph of Test Bins in xy Color Space (Pulsed Test Conditions, Tj = 25°C)

CIE1931-x

Table 38: 2-Step to 5-step MacAdam ellipse color bin definitions for TYF CoB Core Range

6.1 Table 39: Maximum Ratings

Notes for Table 39:

• Driven the arrays at higher currents however lumen maintenance may be reduced.
• Proper current derating must be observed to maintain junction temperature below the maximum
• Pulsed operation with a peak drive current equal to the stated peak pulsed forward current is acceptable if the pulse on-time is ≤1ms per cycle and the duty cycle is ≤10%
• Light emitting diodes are not designed to be driven in reverse voltage and will not produce light under this condition. Maximum rating provided for reference only.

Notes: 1. All dimension tolerance is ±0.2mm unless otherwise noted. 2. Tc measurement point at cathode

RECOMMENDED SOLDERING CONDITION

For manual soldering. Please use lead-free soldering and the soldering shall be implemented using a soldering bit at a

temperature lower than 350C, and shall be finished within 3.5 seconds for one land. No external force shall be applied

to resin part while soldering is implemented. Next process of soldering should be carried out after the product has

return to ambient temperature. CAUTION: TEMPERATURE CONTROL

Product Packing and Labeling

Shenzhen TongYiFang (TYF) Optoelectronic Technology Co., Ltd., was established in Shenzhen, China in 2009 and located in jincheng Road, Shajing Town, Bao'an District, Shenzhen, is a National High-Tech Enterprise focuses on high-end LED device package, COB integrated technology development, optical design and LED lighting solutions. TYF Strives to bring in high-end machines for full-automatic production and aging test equipment for making itself a leading International LED production base.

Main products includes COB, Flip-chip COB, Tunable COB, EMC 3030, EMC5050, EMC3535, K2 High Power Emitter, Horticultural LEDs, AC LED Module and PCBA. TYF provides full-range of technical and  professional support for LED light source design, solutions and lighting applications.

With the concept of “High Quality, No Defect:, TYF executes strict quality control according to the ISO/TS16949 certification system in every step from the raw materials to technological design and to the production. The full series of products was certificates by LM-80, and obtained certificates of CE, ROHS, EN62471, ISO9001:2008 and etcs. TYF successfully obtained the China National Qualifications Evaluation Committee (C N A S ) Laboratory accreditation certificate.

With 10 years of business development in LED package field, TYF has been adhering to the core values of“ Customer-oriented, Talent-oriented, Honesty-oriented” the company gets the support and the praise from our clients. TYF strives to become a world famous brand of high-power LED light source.

With the spirit of “Integrity, Innovation, Quality and Efficiency”, TYF tries to become a pacemaker and a positive advocate in the field of LED. While providing first-class LED lighting products, TYF concerns more on customer's interests and global environmental issues. TYF will keep trying and devoting itself to the cause of human optoelectronics and of environmental protection.

TYF owns more than 100 patents, TYF is Shenzhen high-tech enterprise and China high-tech enterprise.
