1. Details:

Item name: horticulture SMD led

Product type: SMD 3030 5050

Voltage: 3.0-3.4V

Place of Origin: ShenZhen, China

Model: TYF SMD 3030

MOQ: 4000 piece

2. Product Features

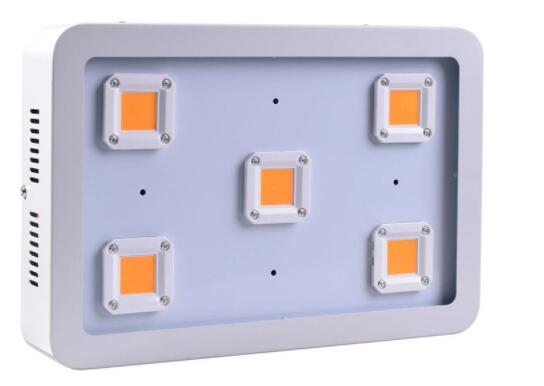

1. PPFD up to 1450μmol @0.2m,Hanging installation of greenhouses and basement plant growth lights

2. Meanwell power supply for longer life and reliability

3. Function mode option DM: with built-in dimmer. (Can be customized external to adjust the light, use PWM, 0-10V dimming, need to buy additional)

4. Function mode option UV: With a separately controlled UV spectrum switch, you can turn on the UV 395nm spectrum at the appropriate time to stimulate the plant's stress response and produce useful pharmaceutical ingredients.

5. Function mode option UV-DM: UV spectrum switch, additional dimming potentiometer

6. Preferred plant-specific spectra, multiple light-recipe to meet different plant requirements

7. Discard the traditional fan cooling solution (as a result of fan lights affect the life span of life)

8. Input: AC100~305V PF >0.9 Power: 200W

9. Meet the safety requirements around the world, CE RoHS FCC

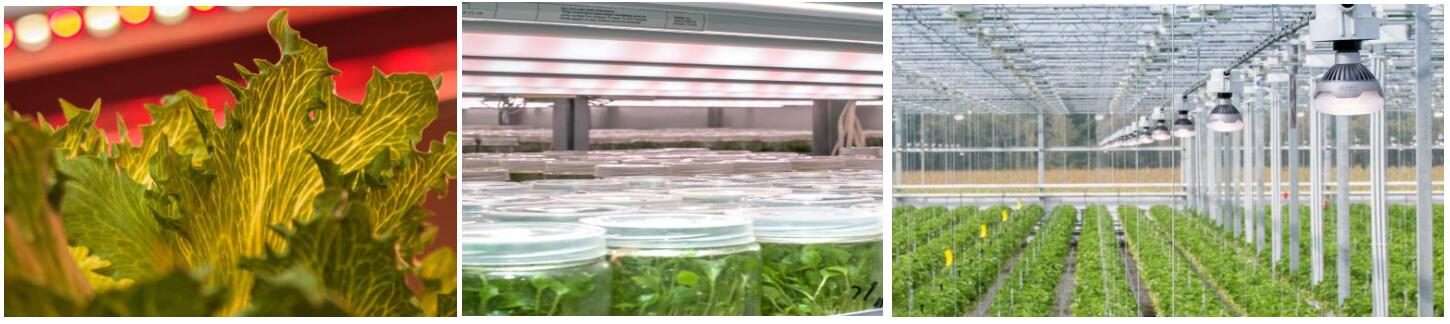

3. Applications:

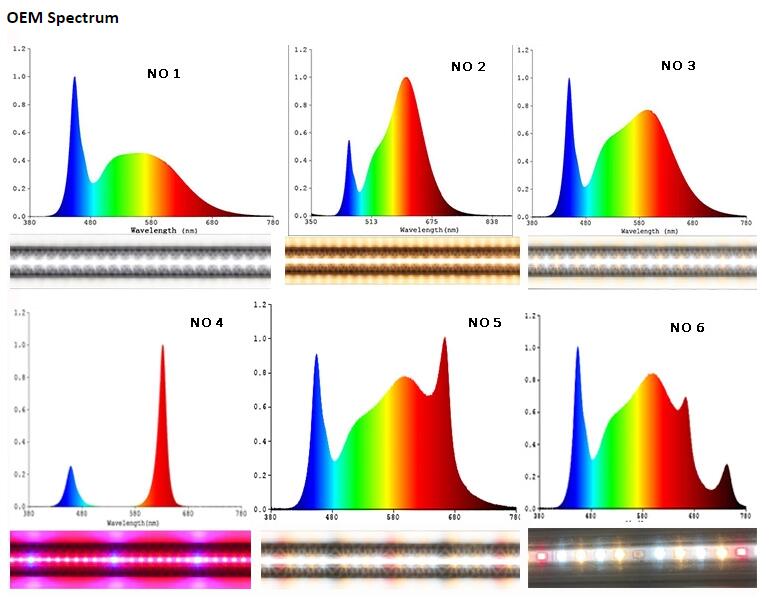

4. spectrum

5. Packaging

TYF Opto. LED modules products, packed in plastic Tray, according to different size, XX PCs each plastic Tray, as shown in the following. products without plastic box packed in bubble bags, in order to prevent the outside pressure, choose different bubble bag, according to the product size in each pack of XX products, packaged product will be stored in the form of carton and sealed, as shown in the following.

1) xx PCS LED module per Tray 4) Box information & packing

2)Tray stack and taping, XX LED module

trays and additional 1 dummy trays each up of

box. Add silica gel (1 each) on top of the tray

3) Sealing packing

Shenzhen TongYiFang (TYF) Optoelectronic Technology Co., Ltd., was established in Shenzhen, China in 2009 and located in jincheng Road, Shajing Town, Bao'an District, Shenzhen, is a National High-Tech Enterprise focuses on high-end LED device package, COB integrated technology development, optical design and LED lighting solutions. TYF Strives to bring in high-end machines for full-automatic production and aging test equipment for making itself a leading International LED production base.

Main products includes COB, Flip-chip COB, Tunable COB, EMC 3030, EMC5050, EMC3535, K2 High Power Emitter, Horticultural LEDs, AC LED Module and PCBA. TYF provides full-range of technical and  professional support for LED light source design, solutions and lighting applications.

With the concept of “High Quality, No Defect:, TYF executes strict quality control according to the ISO/TS16949 certification system in every step from the raw materials to technological design and to the production. The full series of products was certificates by LM-80, and obtained certificates of CE, ROHS, EN62471, ISO9001:2008 and etcs. TYF successfully obtained the China National Qualifications Evaluation Committee (C N A S ) Laboratory accreditation certificate.

With 10 years of business development in LED package field, TYF has been adhering to the core values of“ Customer-oriented, Talent-oriented, Honesty-oriented” the company gets the support and the praise from our clients. TYF strives to become a world famous brand of high-power LED light source.

With the spirit of “Integrity, Innovation, Quality and Efficiency”, TYF tries to become a pacemaker and a positive advocate in the field of LED. While providing first-class LED lighting products, TYF concerns more on customer's interests and global environmental issues. TYF will keep trying and devoting itself to the cause of human optoelectronics and of environmental protection.

TYF owns more than 100 patents, TYF is Shenzhen high-tech enterprise and China high-tech enterprise.
