    Dimmable High Power Led Module , AC230V Led Lighting Module 50W 50*70mm

    Ask Lasest Price
    Brand Name : TYF
    Model Number : D5070
    Certification : CB CE
    Price : Negotiable
    • Product Details
    • Company Profile

    Dimmable High Power Led Module , AC230V Led Lighting Module 50W 50*70mm

    High Quality 50w LED Module 230v Driverless AC COB LED3000K 4000K 6000K life time beyond 30000 hours


    TYF-D5070S5023R0.pdf



    • Connected directly to AC voltage without driver;
    • A module with integrated components;
    • Economical one-piece solution;
    • High efficiency, high power factor and low harmonic distortion;
    • High color rendering index (≥70);
    • High luminous efficacy 110LM/W;
    • Three-year warranty;
    • LEDs approved LM80
    • Application: Flood light


    DOB
    X1X2-X5X6X7-X8X9-X10X11-X12X13X14X15X16X17X18X19X20 X21X22
    Product Code

    Client

    Code

    IC Code

    Power

    Code


    Voltage Code


    Serial Num.

    LED

    Code


    CCT

    Code


    SDCMCRI CodeLuminanceYearMonth

    Serial

    Num.

    Module CodeCase CodeSerial Num.

    Serial Num.



    1) product code: C=Client Module D=Self Module

    2) Client Code & Module Code: if =C then 4 digit for client code else for self module code

    3) IC Code: one character for IC

    4) Power Code:

    Power Code
    01—99W100W120W150W200W250W300W350W400W450W500W
    01-99A0B0C0D0E0F0G0H0J0K

    5) Voltage Code:11=110V,12=120V,22=220V,23=230V

    6) CCT Code

    CCT Code(K)

    1800

    -

    2000

    2000

    -

    2200

    2200

    -

    2400

    2500

    -

    2700

    2700

    -

    2900

    3000

    -

    3200

    3200

    -

    3400

    3500

    -

    3700

    4000

    -

    4300

    4500

    -

    4800

    5000

    -

    5500

    5800

    -

    6300

    6000

    -

    6500

    6500

    -

    7000

    1820222527303235404550586065


    Chromaticity Bins


    TYF complies with the ANSI C78.377A standard for its chromaticity bin structure. For each ANSI quadrangle for the CCT range of 2700K to 6500K, TYF provides 5 Bins and 3 Bins.


    Figure 4-1-1 Chromaticity Bin


    Table 4-1-2 5 step Bins

    CCTStepsCxCyabtheta
    2700K50.45780.41010.013500.0070053.70
    3000K50.43380.4030.013900.0068053.22
    3500K50.40730.39170.015450.0069054.00
    4000K50.38180.37970.015650.0067053.72
    5000K50.34470.35530.013700.0059059.62
    5700K50.32870.34170.012430.0053359.09
    6000K50.31230.32820.011150.0047558.57

    Table 4--1-3 3step Bins

    CCTStepsCxCyabtheta
    2700K30.45780.41010.008100.0042053.70
    3000K30.43380.4030.008340.0040853.22
    3500K30.40730.39170.009270.0041454.00
    4000K30.38180.37970.009390.0040253.72
    5000K30.34470.35530.008220.0035459.62
    5700K30.32870.34170.007460.0032059.09
    6000K30.31230.32820.006690.0028558.57

    Typical Electrical & Optical Curves

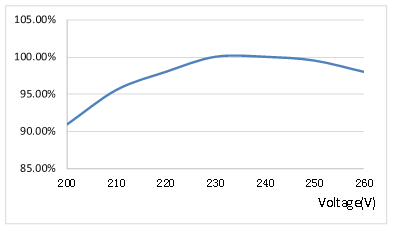

    Figure 4-2-1 Relative Power vs. Voltage, Ta =25℃


    Figure 4-2-3 Radiant Pattern, Ta =25℃


    ITEMSYMBOLUNITTYPICAL Value
    Input VoltageVinV230
    Input CurrentIFmA215
    Operating FrequencyFHz50/60
    Input PowerPW50
    Power FactorPF0.95
    Total Harmonic DistortionTHD20%
    Dimming TypeRNA □ TRIAC □ PWM □ 0-10V □ DALI □ DMX □ Smart □ Other
    Surge CapacityVsKV1.5
    Electric Strength(AC)VeKV1.5
    Operating/Case TemperatureTa/Tc25/85
    LED ParametersCOB
    Luminous FluxΦvLm5120
    Luminous EfficiencyηvLm/w110
    Color TemperatureCCTK6168
    Color Rendering IndexRa/CRI70
    Light Distribution--
    Viewing Angle2θ 1/2Deg.-

    Note:

    1) Operating Voltage doesn't indicate the maximum voltage which customers use but means tolerable voltage according to each country’s voltage variation rate. It is recommended that the solder pad temperature should be below 85℃.

    2) Color bins are defined at transient operation.

    3) The tolerance of measurement at our tester is Φv+/-10% and Ra+/-2.

    4) Tolerance of ±5% on Power dissipation.

    5) Φv is the total luminous flux output measured with an integrated sphere.

    6) Surge Capacity in accordance with IEC61000-4-5.

    7) The Variants Modules Parameters please reference table2-2.


    Notes:

    1) All dimensions are in millimeters.(Tolerance:±0.2mm)

    2)Scale: None


    Note:

    1)TYF Opto. DOB Module is Recommended to keep the junction temperature under maximum junction temperature spec.(Table 2-4).

    LED lead temperature and IC top case temperature measured with thermocouple. LED and IC unction temperatures can be calculated using the formulas as follow.

    Ts_max=Tj_max-Rθj-s * Pd

    For Example:

    If LED lead temperature and IC top case temperature are 90℃ then the LED junction temperature

    Tj=Ts_max+Rθj-s*Pd=90℃ + 12 ℃/W* 1 W = 102 ℃

    and the IC junction temperature

    Tj=Ts_max+Rθj-s*Pd=90 ℃ + 15℃/W*2 W= 120 ℃

    Silicone Resin of DOB (AC-COB) Handing


    TYF Opto. LED modules products, packed in plastic Tray, according to different size, XX PCs each plastic Tray, as shown in the following. products without plastic box packed in bubble bags, in order to prevent the outside pressure, choose different bubble bag, according to the product size in each pack of XX products, packaged product will be stored in the form of carton and sealed, as shown in the following.


    1) xx PCS LED module per Tray 4) Box information & packing

    2) Tray stack and taping, XX LED module trays and additional 1 dummy trays each up of box. Add silica gel (1 each) on top of the tray

    3) Sealing packing
